Heat Insulation Board

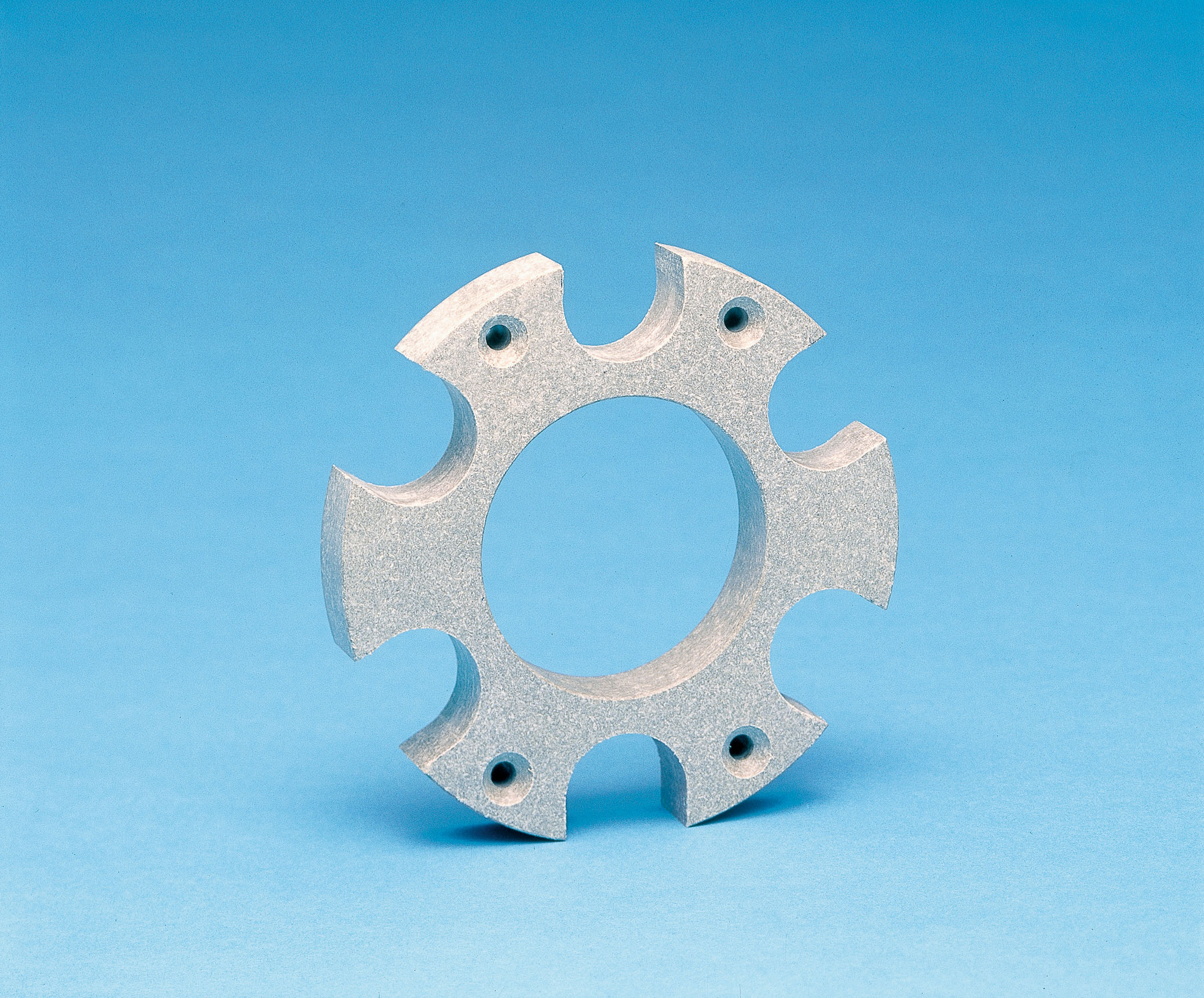

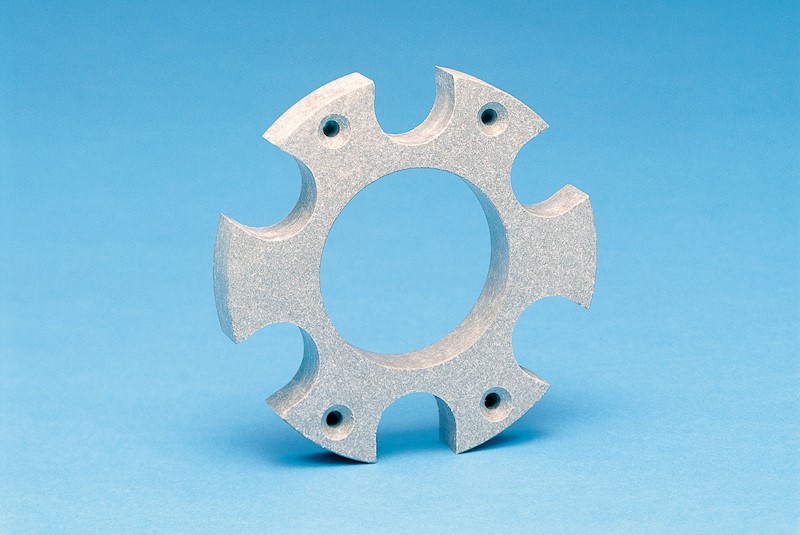

As a heat-insulation board offering both heat resistance and load resistance, the heat-insulation board for industrial equipment can be used in hot press machines and induction heating furnaces.

TOMBO No	Product Name	Description	Max Temperature	Sizes (mm)
6840	HEMISUL™	Use in precision devices and industrial machines	500°C	5-75 x 900 x 1210
6850	NEOARK™	Designed for severe conditions (eg automotive ark shooter material)	1000°C	3-40 x 400 x 500

Molten Aluminum

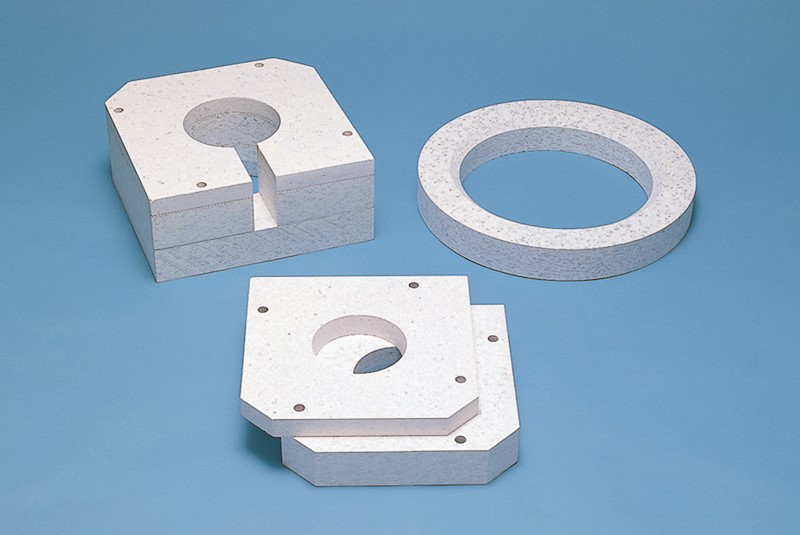

Asbestos-free thermal insulation materials that offer outstanding non-wettability, heat insulation, and durability. It is prefered by molten aluminium industry during aluminium molding and processing.

TOMBO No	Product Name	Description	Max Temperature	Available as
4720	LUMIBOARD™	Thermal insulation board for trasnfer, casting and holding	1000°C	12.7-28.5 x 1260 x 2550 mm
4722-A	LUMICAST™-A	Castable thermal insulation	1000°C	15kg/can
4723	LUMISUL™ LD	Molded and sintered shapes for aluminum vessel inner linining	1000°C	Made to order

General purpose

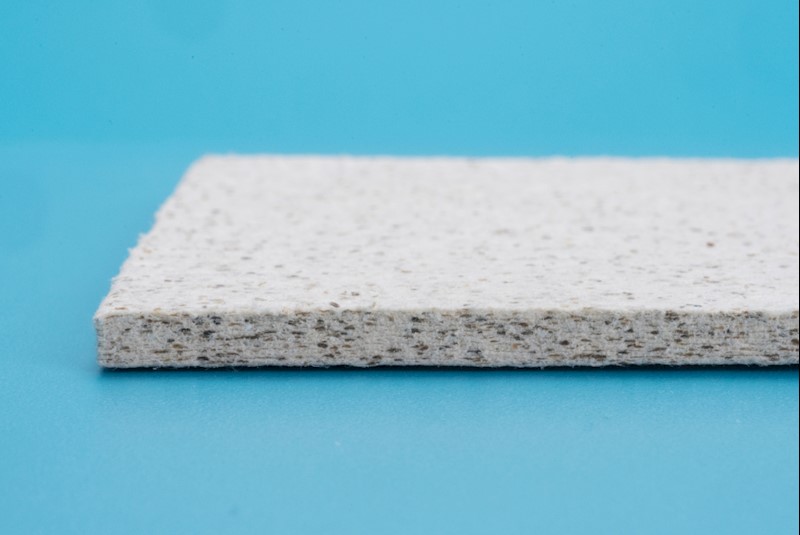

The general-purpose heat-insulation board consists of an inorganic material and a small amount of inorganic or organic binder, suitable for applications in backup materials for heat-resisting bricks and combustion gas seals. Also has a unique quality of expanding when exposed to heat.

TOMBO No	Product Name	Description	Max Temperature	Sizes (mm)	Data Sheet
6760	VERMOFLEX™	Heat-expandable, fire-resistant sheet	800°C	2, 3, 4 x 1000 x 1000

Heat Insulation Boards Downloads

Molten Aluminium Thermal Insulation

Thermal Insulation Boards
