Aluminium Casting & Processing

Enlarge image

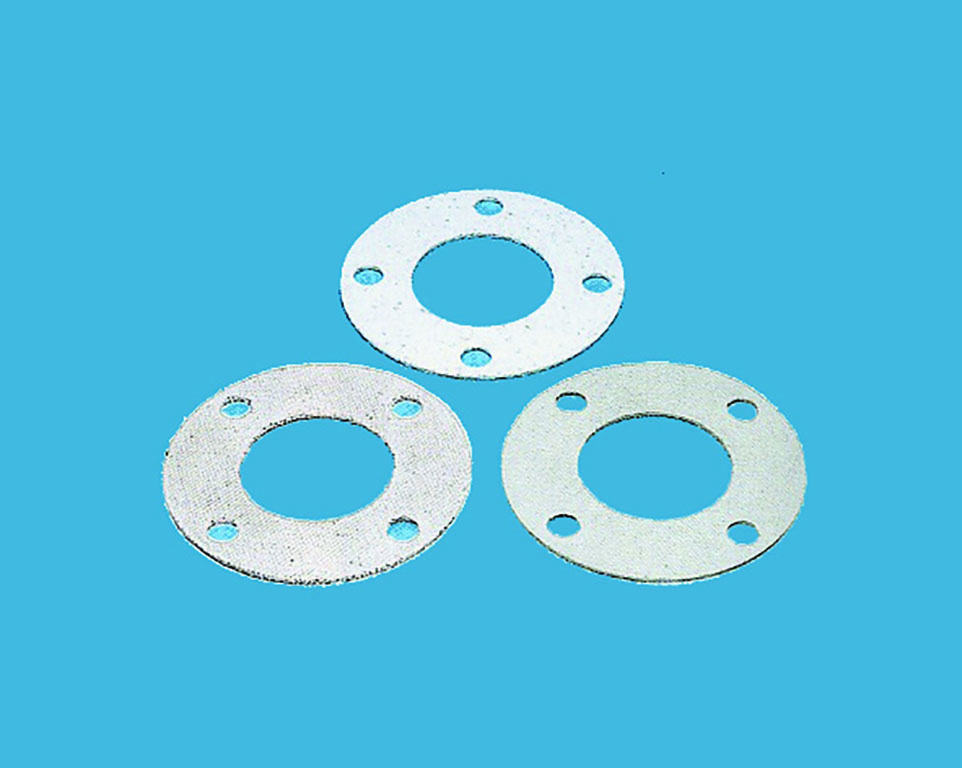

1400 Manhole Gasket

These gaskets are made of cloth to which a rubber compound is applied woven into a manhole shape and then embossed. They are used to seal distorted flanges and furnace cover flanges to which high seating stress cannot be applied. Type selection is made according to temperature, shape of selected parts, required strength etc.

Enlarge image

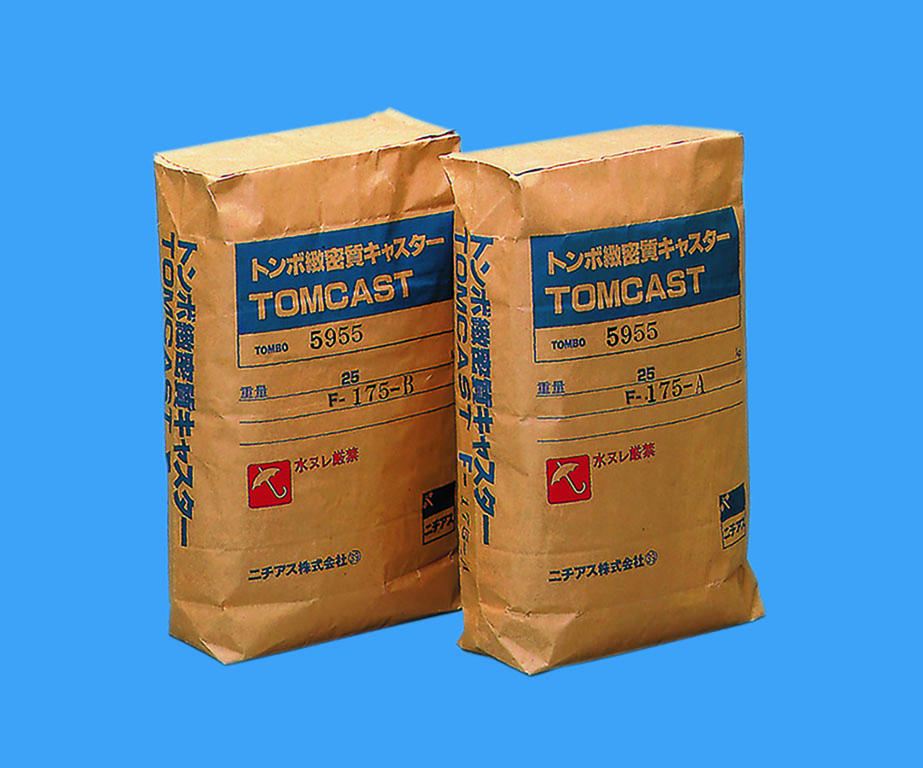

5955 TOMCAST™

This product provides higher density than ordinary castables. Because it is highly resistant to wear and allows high-density molding to provide high resistance to corrosion by molten metal or slag, it is used for the inner lining of a melting furnace, the bottom of a ladle and the surface of a gutter on which molten metal flows.

Enlarge image

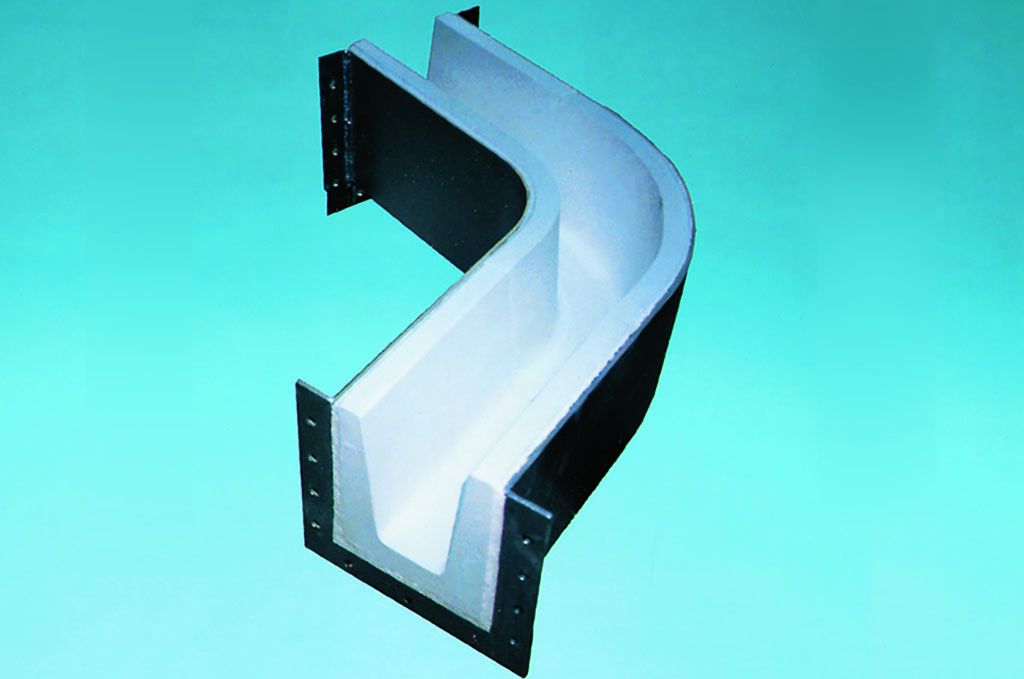

4723 LUMISUL™ LD

One-piece parts moulded and sintered to various shapes for use as the inner lining of molten metal vessels that come into direct contact with molten aluminium alloys. Due to excellent non-wettability and corrosion resistance as well as ease of removal of adhered metal, they are used for launders, bath units for holding furnaces, transfer pipes etc.

Enlarge image

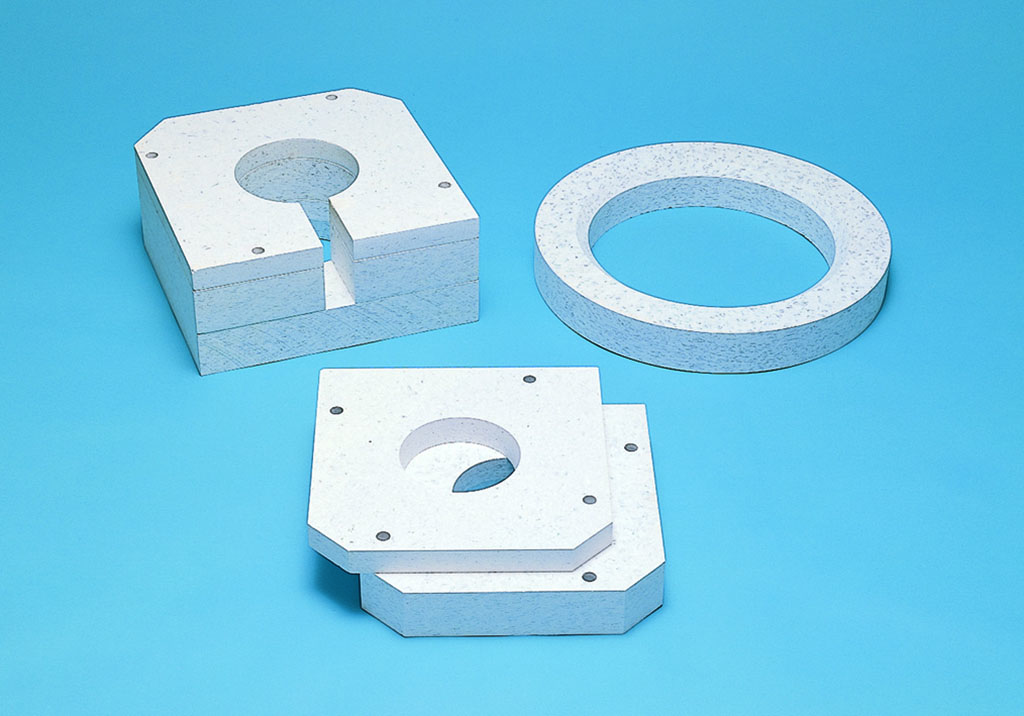

4720 LUMIBOARD™

Zonolite-based calcium silicate boards with excellent heat resistance. Because of their low heat conductivity and superior workability, these boards are formed into launders, floats and other parts that come into direct contact with molten aluminium alloys.

Enlarge image

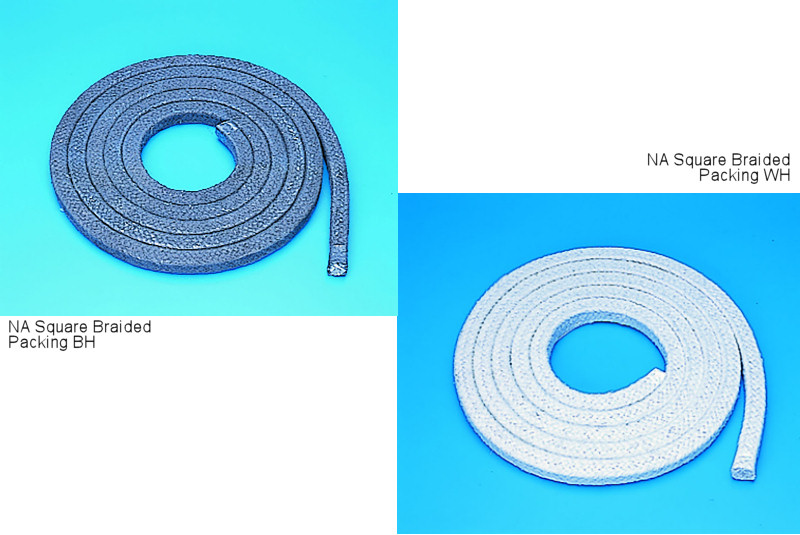

NA Square Braided Packing BH, WH

Both types of packing are made of high-density braid ceramic fibre reinforced with metal wires. Type BH is impregnated with graphite based material; type WH with titanium based material. The packing is used in furnace covers to seal the furnace. Type selection is made according to temperature, shape of sealed parts etc.

Enlarge image

4722-A LUMICAST™

Fibrous unshaped refractory material used for the inner lining of molten metal vessels that come into direct contact with molten aluminium alloys. Due to its excellent non-wettability and corrosion resistance as well as low heat conductivity and high resistance to thermal shock, this material is used for the inner lining of ladies, molten metal vessels and gutters as well as for backup materials.

Enlarge image

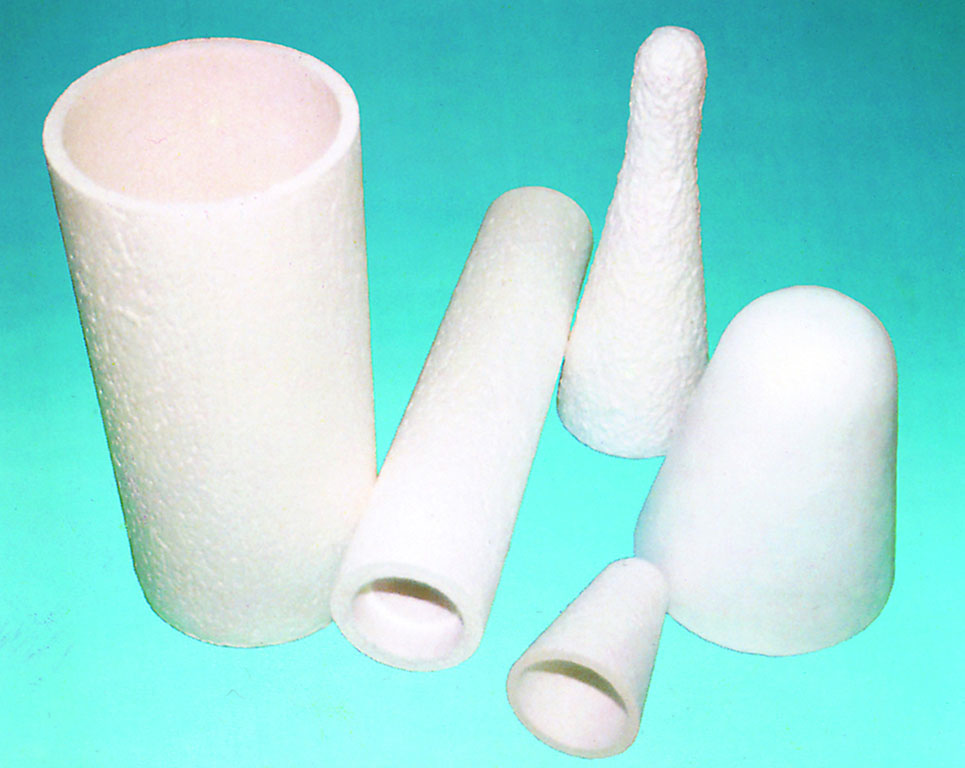

FINEFLEX BIO™ Moulded Products

These products are made of a mixture of bulk ceramic fibre 'FINEFLEX BIO™' and a small amount of binder, which is moulded into various shapes. The material is used as auxiliary material for molten aluminium vessels.

Enlarge image

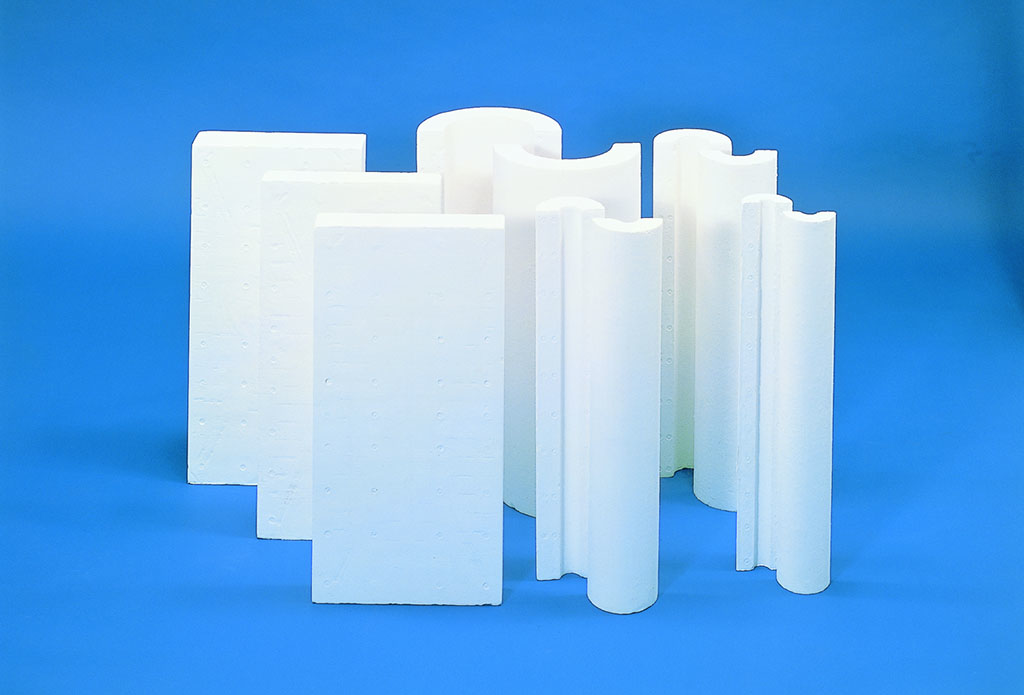

KEICAL ACE SUPER SILICA™

Super lightweight heat insulation material that can withstand temperatures of up to 1000°C. it is used as auxiliary material for molten aluminium vessels
