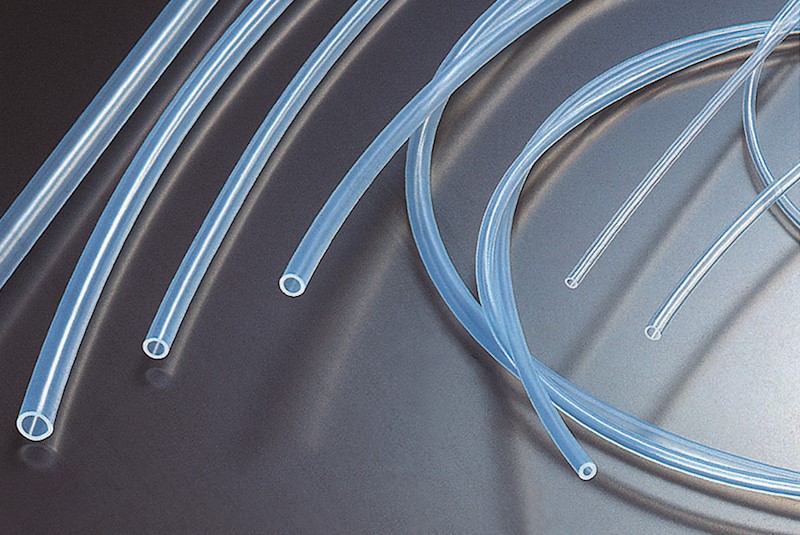

Fluoropolymer Tubing

Tubing

Fluoropolymer tubes offer outstanding chemical, heat, and weather resistance. They are used for fluid transfer in a wide range of fields, such as electronics including semiconductors and liquid crystals, medical and food fields, and fine chemicals.

For specific sizes, please refer to our brochure.

TOMBO No Product Name Description Size Range (ID x OD mm) Application Data Sheet
9003 NAFLON™ tube PTFE, PFA, FEP 0.25 x 0.75 - 76.0 x 80.0 Basic
9003-PFA-HG NAFLON™ PFA-HG tube Chemical transportation 2 x 3 - 22 x 25 Semiconductor
9003-BT NAFLON™ BT tube Bend without buckle 1.59 x 3.17 - 9.00 x 12.00 Industrial
9003-PFA-NE NAFLON™ PFA-NE tube Outside surface conductivity 2 x 3 - 22 x 25 Semiconductor
9003-PFA-AS NAFLON™ PFA-AS tube Inside and outside surface conductivity 4 x 6 - 22 x 25 Semiconductor
9003-RPL NAFLON™ RPL tube Flexible, small bend radius 6 x 8.5 - 12.7 x 16.0 Industrial
9055 NAFLON™ Bent tube PFA, PTFE preformed shapes 4.35 x 6.35 - 15.88 x 19.05 Semiconductor


Tubes Downloads
